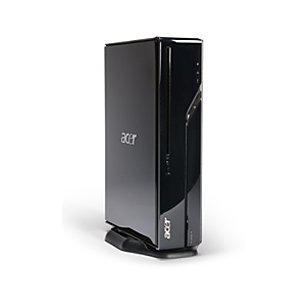

• Acer Aspire L3600 (1, 2), Acer Aspire L5100, Acer Aspire X3200, Acer Aspire X3600, compare AR3700-U3002, VN281G-UA4252W, RL70-UR10P
• Fujitsu Siemens Computers AMILO Desktop S
• Shuttle
• eMachines EL1200 Desktop Series PC

• KIOSK PCs

• Fujitsu Esprimo
• Fujitsu Siemens Scaleo Home Server 1900 (1, 2, 3)
• AOpen MiniPC (купить тут)
• Asus EEE Box
• QOTOM miniPC
• Apple Mac mini
• ZOTAC ZBOX (ZOTAC mainboard comparison (61.13 KiB, 1211 downloads))
  • Неттоп своими руками: материнская плата Zotac ION-ITX-C
  • Mini ITX Store
• Детали о проекте неттопа LXBOX
• Shuttle DS87 specification (€218.42, €214.85)

Name	CPU	Socket	GPU	USB	Video out	WiFi	Bluetooth	LAN	mini PCI-e	Dimension (mm)	Price	Other
Shuttle Slim DS81	Intel Core i7-4770S, 4x3.1 GHz	LGA 1150	Intel HD 4600	2×3.0 + 6×2.0	1×HDMI, 2×DP (3840×2160)	–	–	2×	2× (half + full / mSATA III)	190×165×43	€209 (no CPU)	2×RS232, card reader, 1×SATA II + 1×SATA III
Giada i57B	Intel Core i5-4250U	BGA 1168, CPU-on-board	Intel HD 5000	1×3.0 + 2×2.0	1×HDMI (4096×2160), 1×DP (3200×2000)	–	–	1×	2× (half + full / mSATA III)	190×149×26		1×RS232, card reader
Zbox EI750	Intel Core i7-4770R 3.2GHz	BGA 1364	Intel Iris Pro 5200	4×3.0	2×DP, 1×DVI-D	802.11ac	4.0	2×	2× (half + full / mSATA III)	188×188×51		7-in-1 card reader, S/PDIF, 2×SATA

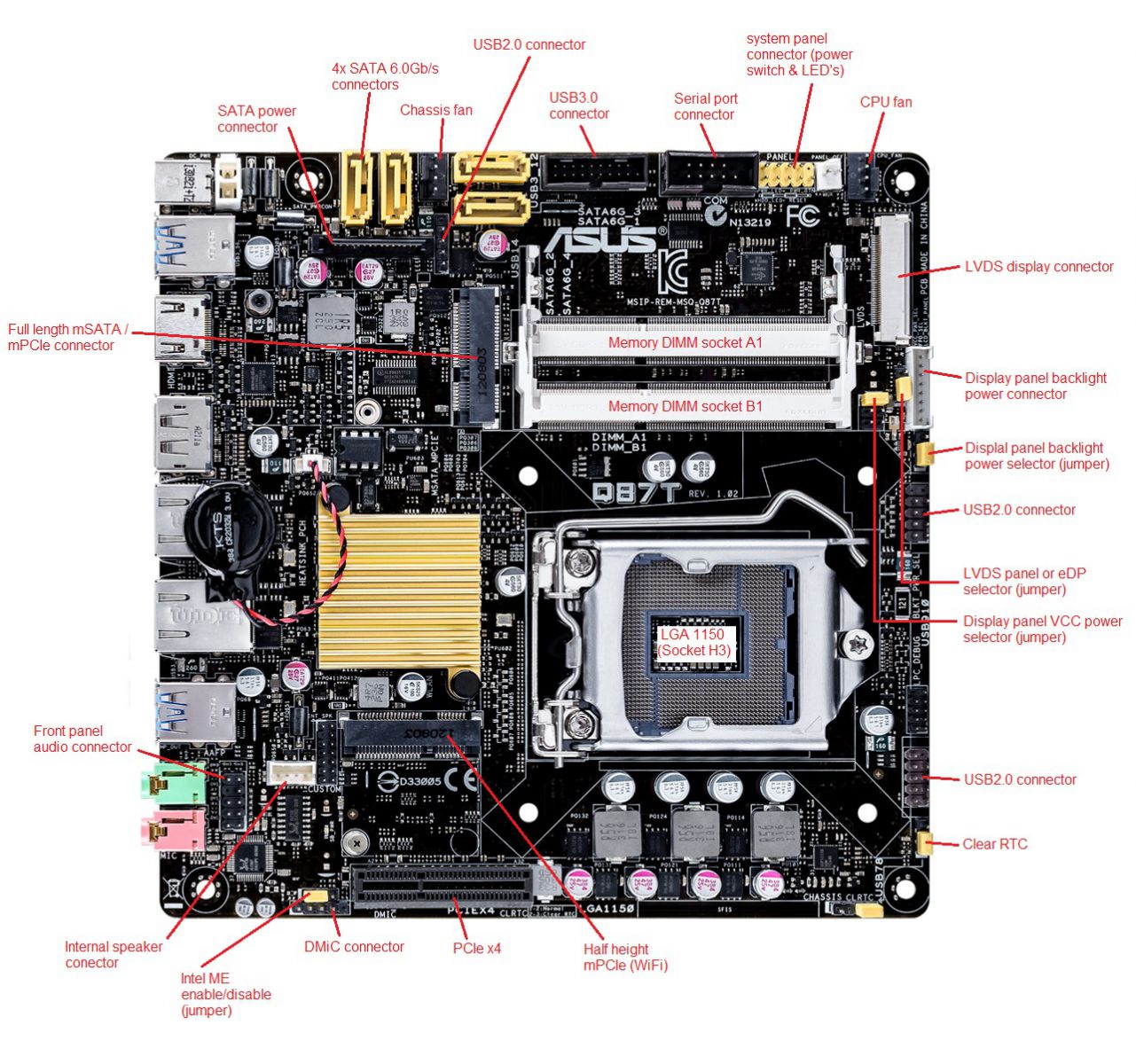

Fanless Thin Mini-ITX PC Core i7 Haswell	Intel Core i7-4765T	LGA 1150	Intel HD 4600	4×3.0	2×DP, 1×HDMI	Intel 7260	4.0	2×		228×187×61	€924

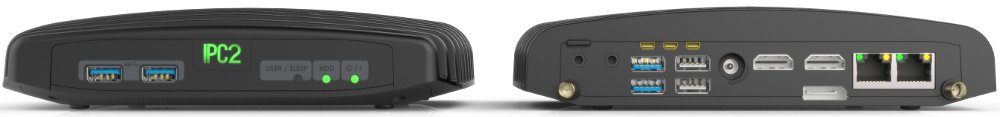

Intense PC2 Pro	Intel Core i7-4600U 2.1GHz	BGA 1168, CPU-on-board	Intel HD 4400	4×3.0 + 2×2.0	2×HDMI (4096×2304), 1×DP (3200×2000)	802.11ac dual band	4.0	2×	2× (half + full / mSATA III)	187×160×40	$878	3×RS232, uSIM (micro-SIM) socket for cellular

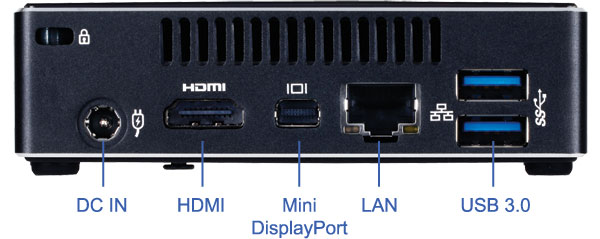

Gigabyte's Brix Ultra Compact	Intel Core i7-4500U 3.0GHz	BGA 1168	Intel HD 4400	4×3.0	1×miniDP (3840×2160), 1×HDMI (4096×2160)	802.11ac	4.0	1×	2× (half + full / mSATA III)	107.6×114.4×29.9		S/PDIF

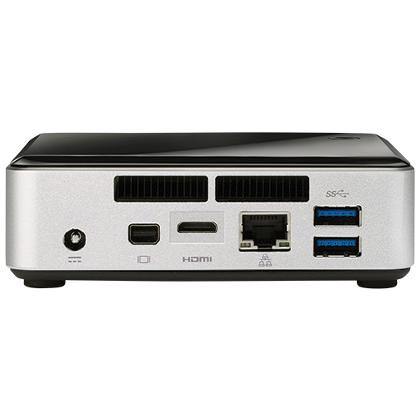

Intel NUC D54250WYK	Intel Core i5-4250U	BGA 1168	Intel HD 5000	4×3.0 + 2×2.0	1×HDMI (1920×1200), 1×DP (3840×2160)	–	–	1×	2× (half + full / mSATA III)	101×101x?		1×SATA

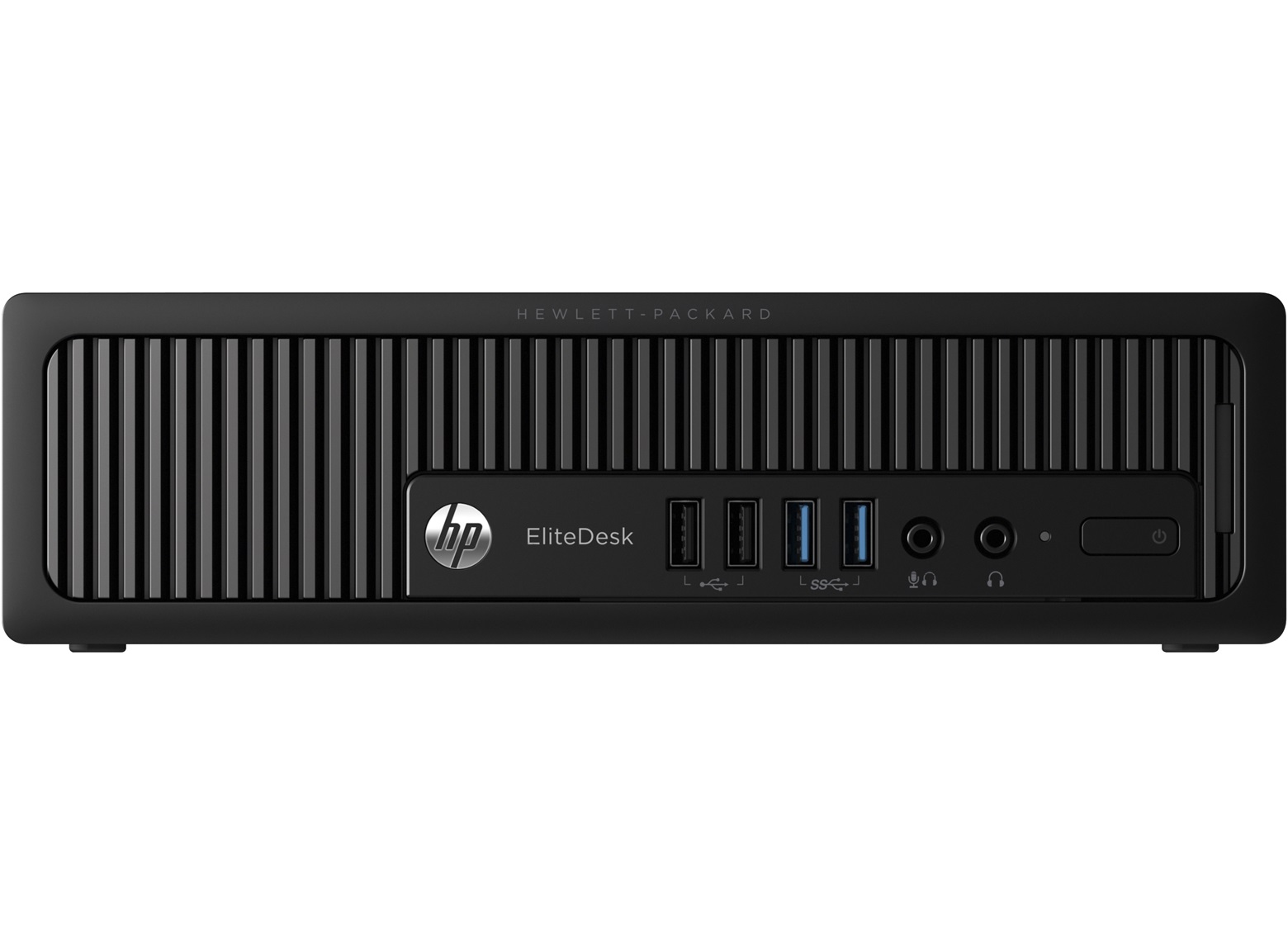

HP EliteDesk 800 G1 Ultra-slim PC	Intel Core i3-4130	LGA 1150	Intel HD 4400	4×3.0 + 2×2.0	2×DP (3840×2160), 1×VGA (1920×1080)	–	–	1×	1× half	251×254×66		1×PS/2
spo-book TURO HM76	Intel Core i7-3632QM, 4x2.2 GHz	BGA 1224	Intel HD 4000	2×3.0 + 6×2.0	2×DP, 1×DVI-I	–	–	2×		180×180×44		4×RS232

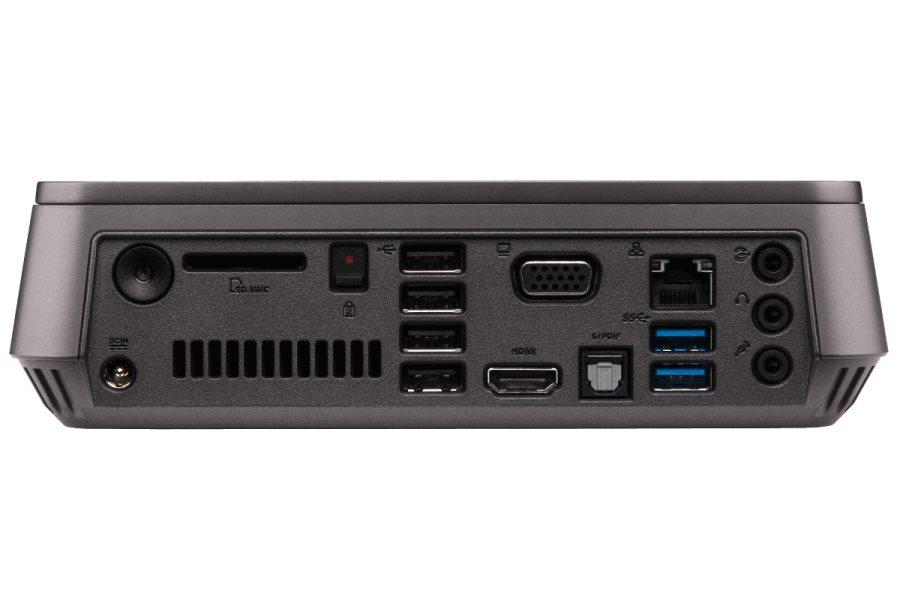

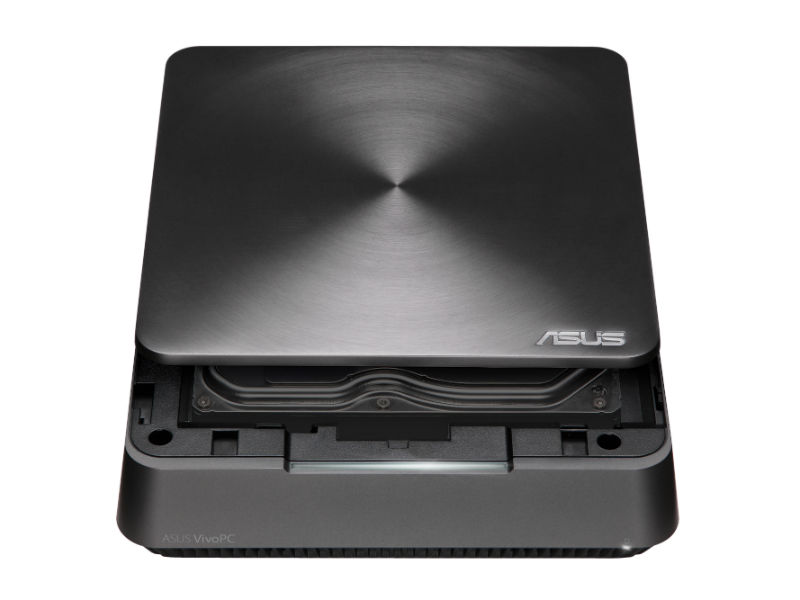

ASUS VivoPC VM60	Intel Core i5-3337U	BGA 1023	Intel HD 4000	2×3.0 + 4×2.0	2×HDMI, 1×VGA	802.11abgn	4.0	1×	1× half	190×190×56		1× Optical S/PDIF

All models have Gigabit LAN and 2× DDR3-1600 SO-DIMM slots (max 16GB RAM).

Images

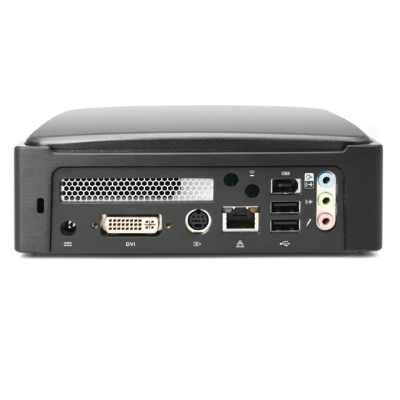

• Brand name: AOpen MP945-D
• CPU: Intel(R) Celeron(R) M 440, 1.86GHz, 533MT/s, Socket M
  Upgrade advise: Core 2 Duo Mobile T7600, 2333MHz, 667MT/s = ~$120
• Chipset: Intel 945GM, ICH7-DH (SATA II, 3.0Gbps).
  Supports: Intel Core 2 Duo, Core Duo, Core Solo and Celeron M4xx CPU (see compatibility list)
• Mem: 2×1024MB, SODIMM DDR2 667 (PC5300) 200 pin, 2 slots

  Intel 945GM chipset does not support remapping of memory ranges, thus BIOS will report 3.2GB (or so) out of 4GB of available memory (see 945 chipset memory limitations, GA-945G-DS3 +4GB RAM, BIOS видит только 3.2GB, For 4GB RAM only 2.99GB usable, Intel 945 chipset and 4GB of memory).

• Video: Intel GMA 950 1920×1200 (1× DVI-I Port, 1× S-Video Out Port)
• HDD: Toshiba MK1234GSX, SATA, 120GB, 2.5″
• CD-RW: Matshita CW-8124, 40 pin IDC
• Ethernet: Intel Corporation 82573L Gigabit Ethernet Controller
• FireWire (IEEE 1394): Agere Systems FW323
• USB: 4× USB 2.0
• WiFi: Atheros Communications Inc. (AR5213A chip, RF2112A 2GHz radio, 802.11bg)
• BIOS Update: R1.17
• Dimensions: 165×165×50mm
• CPU fan: ADDA model AB0612HB-PB2 743A, 12V 0.35A
• See also keepass -uuid:162F9A4BFA04C543A434B6443B111AB1

Configuration screenshots from bundled Windows:

• Misc servers: openssh-server mysql-server proftpd-basic samba squid zoneminder backuppc mldonkey-server dropbox
• Tomcat/Java: tomcat8 jenkins openjdk-8-jre1)
• Web server: apache2 cacti awstats libgeo-ipfree-perl libapache2-mod-svn libapache2-mod-security22)
  • PHP: libapache2-mod-php php-fpm php-ldap php-gd php-mbstring php-bz2 php-xml3) php-net-ldap34)
• Mail: postfix postfix-pcre cyrus-imapd cyrus-admin cyrus-clients sasl2-bin libsasl2-modules fetchmail roundcube spamassassin spamc squirrelmail5) squirrelmail-locales squirrelmail-compatibility squirrelmail-quicksave6)
• LDAP: slapd ldap-utils libpam-ldap libnss-ldap libsasl2-modules-ldap proftpd-mod-ldap
• X server: tightvncserver xtightvncviewer xfce4 xfce4-sensors-plugin gnome-icon-theme thunar wine wine-binfmt binfmt-support autocutsel xsel
• Network: isc-dhcp-server host iproute2 net-tools telnet tcpdump nmap dnsutils whois lynx lftp cifs-utils hostapd wireless-tools bridge-utils bluetooth
• Perl: libtie-ixhash-perl libxml-xslt-perl libdatetime-perl libmime-tools-perl libcrypt-ssleay-perl libxml-twig-perl libxml-writer-perl libimage-exiftool-perl liblog-log4perl-perl librrd-simple-perl
• Filesystem: attr btrfs-tools xfsprogs smartmontools hdparm zram-tools
• Media: alsa-utils vlc-bin
• Other: apt-rdepends chkconfig sudo binutils gammu gpm locate fbset tmux reptyr locales-all vim mc less bc pv zip p7zip-full p7zip-rar xz-utils lz4 unrar rsync dos2unix xsltproc graphicsmagick qrencode mediainfo lsof iftop7) iotop htop sysstat8) lm-sensors lshw dmidecode intel-microcode9) libpam-google-authenticator grub-pc grub-imageboot memtest86+ debsums

Shuttle DS81 additional packages:

• WiFi/WLAN: firmware-atheros. Successful load:

  usb 2-7.2: firmware: direct-loading firmware ar3k/AthrBT_0x11020000.dfu
  usb 2-7.2: firmware: direct-loading firmware ar3k/ramps_0x11020000_40.dfu
  usbcore: registered new interface driver ath3k
  usb 2-7.2: new full-speed USB device number 16 using xhci_hcd
  usb 2-7.2: New USB device found, idVendor=0489, idProduct=e04e, bcdDevice= 0.02
  usb 2-7.2: New USB device strings: Mfr=1, Product=2, SerialNumber=3
  Bluetooth: BNEP (Ethernet Emulation) ver 1.3
  Bluetooth: BNEP filters: protocol multicast
  Bluetooth: BNEP socket layer initialized

• WiFi/WLAN: firmware-iwlwifi firmware-intelwimax. Successful load:

  iwlwifi 0000:01:00.0: firmware: direct-loading firmware iwlwifi-6050-5.ucode
  iwlwifi 0000:01:00.0: loaded firmware version 41.28.5.1 build 33926 op_mode iwldvm
  iwlwifi 0000:01:00.0: Detected Intel(R) Centrino(R) Advanced-N + WiMAX 6250 AGN, REV=0x84
  iwlwifi 0000:01:00.0 wlp1s0: renamed from wlan0

  i2400m_usb 2-7.2:1.0: WiMAX interface wmx0 (00:1d:e1:0e:1d:2a) ready
  i2400m_usb 2-7.2:1.0: firmware: direct-loading firmware i6050-fw-usb-1.5.sbcf
  i2400m_usb 2-7.2:1.0: firmware interface version 9.3.2
  i2400m_usb 2-7.2:1.0 enx001de10e1cdc: renamed from wmx0

Deprecated (don't use on the server):

• X app: gnucash keepassx logjam genisoimage dvdauthor k3b ttf-mscorefonts-installer xnview
• Dictionaries: myspell-en-gb myspell-ru myspell-de-de myspell-nl aspell aspell-en aspell-ru aspell-de aspell-nl
• Development: strace gdb make cmake patch gcc devscripts quilt git subversion
• Network: ntpdate: superseded by systemctl status systemd-timesyncd.service, see man timedatectl. Also [https://lists.debian.org/debian-user/2002/12/msg04091.html|ntpdate from cron – don't do that]].
• Remove: hddtemp rpcbind nfs-common

• Make a backup and dump of all Berkley databases:
  1. subversion (/var/lib/svn) via svm admin dump [repo]
  2. cyrus (/var/lib/cyrus) via cvt_cyrusdb:

     cvt_cyrusdb /var/backups/cyrus-mboxlist.txt flat /var/lib/cyrus/mailboxes.db skiplist
     cvt_cyrusdb /var/backups/cyrus/dmitry.seen.txt flat /var/lib/cyrus/user/d/dmitry.seen skiplist
     cvt_cyrusdb /var/backups/cyrus/nbic.seen.txt flat /var/lib/cyrus/user/n/nbic.seen skiplist
     chown cyrus.mail /var/lib/cyrus/mailboxes.db /var/lib/cyrus/user/d/dmitry.seen /var/lib/cyrus/user/n/nbic.seen
     rm /usr/lib/cyrus/cyrus-db-types.active

  3. ldap (/var/lib/ldap) via slapcat
• Make sure you have the latest incremental backup.

After update check:

• logging
  Move mail logs to subfolder:

  # mkdir /var/log/mail
  # chown root.adm /var/log/mail
  # chmod 750 /var/log/mail
  # mv /var/log/mail.* /var/log/mail
  # /etc/init.d/rsyslog restart

• Apache
  usermod -a -G www-data dmitry to make it possible for me to update files that Apache creates
• awstats
  • Create new user and make it possible for this user to read Apache access file:

    # useradd -g www-data awstats
    # chown awstats -R /var/lib/awstats
    # chown awstats /var/log/apache2 /var/log/apache2/*.log
    # chmod a-w -R /var/log/apache2

  • Make sure that Apache access logs are rotated resulting awstats ownership (/etc/logrotate.d/apache2 states create 440 awstats adm).
  • Apply patch to support column sorting plus few other fixes:

    # patch -d /usr/lib/cgi-bin < awstats.pl_favicon.patch
    # patch -d /usr/lib/cgi-bin < awstats.pl_urldecode.patch
    # patch -d /usr/lib/cgi-bin < awstats.pl_sortable.patch
    # ln -s /home/programming/patches/awstats/awstats.ico /usr/share/awstats/icon/other/awstats.ico

• SSL/CA
  Make sure that the following symlinks exist:

  centurion:/etc/ssl/certs# ll | grep centurion
  lrwxrwxrwx 1 root root     23 Jun 22 18:03 centurion_ca.pem -> /etc/ssl/private/ca.pem
  lrwxrwxrwx 1 root root     16 Jun 22 18:21 e0042930.0 -> centurion_ca.pem
  lrwxrwxrwx 1 root root     16 Jun 22 18:21 ebf85ebc.0 -> centurion_ca.pem

  Check that CA can be verified.

• libnss-ldap
getent passwd should list LDAP users
• pam_ldap
  Users should be able to login using LDAP authentication
• Cyrus+Postfix (same as make -f /etc/ssl/Makefile proper)

  # mkdir -m 750 /var/spool/postfix/var/run/cyrus/
  # chown cyrus.mail /var/spool/postfix/var/run/cyrus/
  # usermod -a -G mail postfix    # to access /var/spool/postfix/var/run/cyrus/
  # usermod -a -G sasl postfix    # to access /var/spool/postfix/var/run/saslauthd/
  # openssl s_client -starttls smtp -quiet -crlf -connect localhost:25

• /etc/mailname should be FQDN of this host and /etc/hostname can be just a hostname
• ProFTPd
  Check that passive mode ports (9000-9100) are forwarded from router. Make sure that IP address is correctly masqueraded (MasqueradeAddress option), for example the startup message can read:

  proftpd[25530] localhost: 127.0.0.1:21 masquerading as 92.143.15.216

• smartmontools
  The daemon that checks that S.M.A.R.T. characteristics to not degrade. Check /etc/default/smartmontools. The utility smartctl is used by Cacti poller (it substitutes hddtemp which should be removed).
• sensors
  Make sure that module w83627hf is added to /etc/modules: echo w83627hf >> /etc/modules.
• SquirrelMail¹⁵⁾
  Install version 1.5.1 to support IMAP+STARTTLS. Use patched version or apply patches from SquirrelMail section.
• BackupPC
  Check that incremental backups are created for all hosts.
• mldonkey
  Make sure that torrent client is disabled.
• Zoneminer
  Needs to be the latest version to support MPEG IPcam sources
• SVN
  Check that SVN can be opened.
• Samba
  Should have password to access LDAP server in /var/lib/samba/private/secrets.tdb.

• libsvn1_1.6.17dfsg-1 ⇒ libdb4.8
• cyrus-imapd-2.2_2.2.13p1 ⇒ libdb5.1
• slapd_2.4.25-1.1 ⇒ libdb4.8

• Folder Sizes –
• Spamassassin SpamFilter (Frontend) –
• Compose Extras –
• Add Address
• Autocomplete To/Cc/Bcc fields – in IE
• Quick Save – ok
• G/PGP Encryption Plugin –
• Show thumbnails – requires php5-gd
• Sieve Frontend –

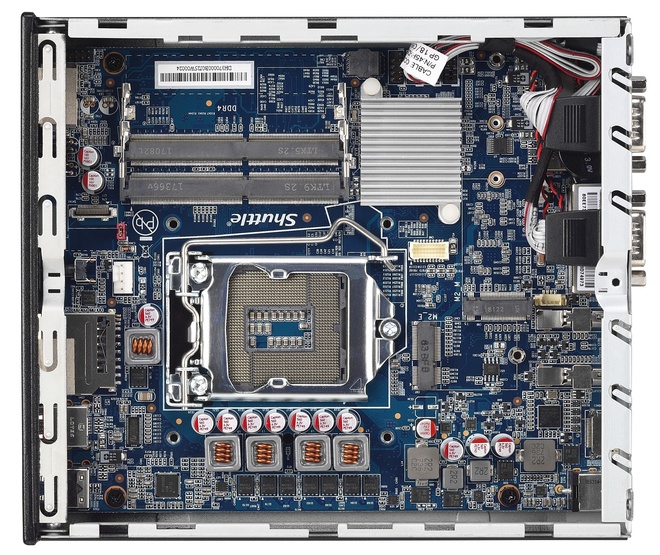

• Socket LGA 1151v2 supports the 8th and 9th generation of Intel Core i7 / i5 / i3 processors (codename “Coffee Lake (Refresh)”) with TDP 65W.
• Mainboard Shuttle FS370
• Chipset: Intel® H370
• 2× SO-DIMM slots with 260 pins, supports DDR4-2400/2666 1.2V SDRAM memory (PC4-19200/21300), max 2×32 GB
• 1× SATA 3.0 (6 Gb/s), 1× M.2-2280M SSD slot with PCI-e Gen. 3.0 X4 supporting NVMe / SATA v3.0 (6 Gb/s), 1× M.2-2230E slot for WLAN cards with PCI-e Gen. 2.0 X1 and USB 2.0
• 2× RJ45 Intel i211 Gigabit Ethernet
• 4× USB 3.1 gen 1, 4× USB 3.1 gen 2, 1× SD card reader
• 2× RS232 serial ports (5V/12V)
• 1× HDMI 2.0a, 2× DisplayPort audio/video with 4K (3840×2160, 2160p/60Hz) support

• Socket LGA 1150 (H3) supports the fourth generation of Intel Core i7 / i5 / i3 / Pentium processors (codename “Haswell”) with TDP 65W.

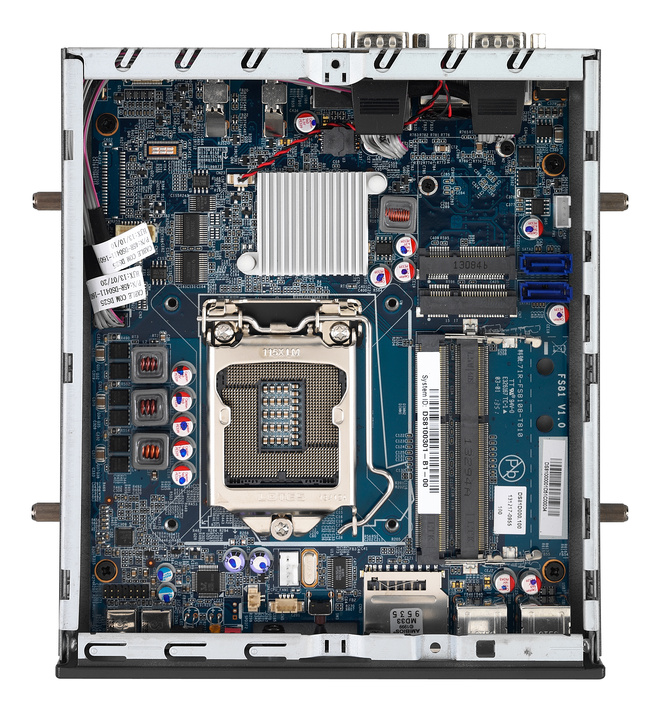

• Mainboard Shuttle FS81 (8 layer design)
• Chipset: Intel® H81 Express (Intel DH82H81 PCH, code name “Lynx Point”)
• 2× SO-DIMM slots with 204 pins, supports DDR3-1333/1600 1.5V SDRAM memory (PC3-10600/12800), max 2×8 GB
• 1× SATA 3.0 (6 Gb/s), 1x SATA 2.0 (3 Gb/s), 1× full size mSATA (supports SATA 3.0 6Gb/s), 1× half size mPCIe (supports PCIe 2.0)
• 2× RJ45 Realtek 8111G Gigabit Ethernet
• 2× USB 3.0, 6× USB 2.0, 1× SD card reader
• 2× RS232 serial ports (5V/12V)
• 1× HDMI, 2× DisplayPort audio/video with 4K (3840×2160, 2160p/60Hz) support

After Windows 10 installation, go to Windows Update and install the following optional items to fix missing drivers:

• INTEL - System - 7/18/1968 - 10.1.16.6
• Intel Corporation - System - 10/8/2018 - 30.100.1841.2
• Intel Corporation - Bluetooth - 23.60.5.10
• Realtek Semiconductor Corp. - MTD - 10.018362.21318

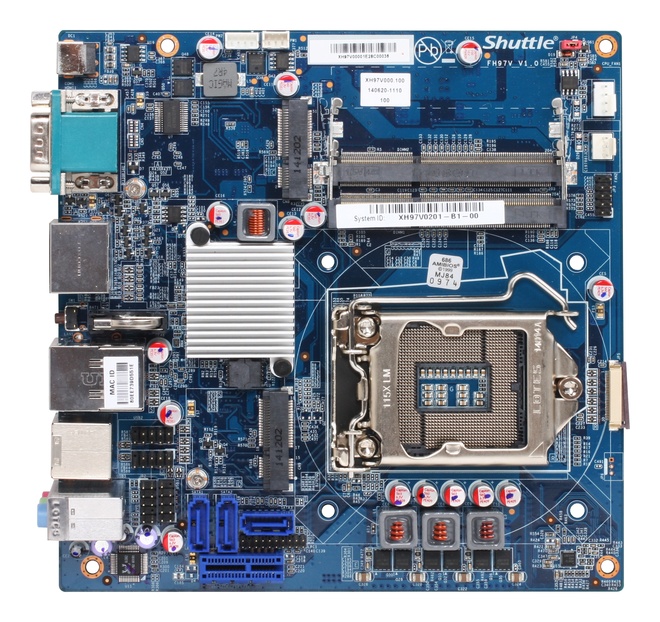

• Socket LGA 1150 (H3) supports the fourth generation of Intel Core i7 / i5 / i3 processors (codename “Haswell” & “Haswell Refresh”) with max power consumption (TDP) 65W.
• Mainboard FH97V, Mini-ITX form factor 17×17 cm, 8 layer design
• Chipset: Intel® H97 (Intel® DH82H97 PCH, code name “Wildcat Point”)
• 2× SO-DIMM 204 pins slots, supports DDR3-1333/1600 1.5V/1.35V SDRAM memory (PC3-10600/12800), max 2×8 GB
• 3× SATA 3.0 connectors (max. 6 Gb/s), 1× external eSATA (not powered, max. 3 Gb/s), 1× mSATA (SATA 3.0 / max. 6 Gb/s)
• 2× RJ45 Realtek 8111G Gigabit Ethernet
• 4× USB 2.0, 4× USB 3.0
• 1× HDMI 1.4, 2× DisplayPort 1.2 audio/video

• Space Cube (direct link): VR5701 300MHz CPU, 64MB DDR, XGA (1024×768), CF card reader, USB1.1, 100Mb LAN, IEEE1355, RS232
• Raspberry Pi: Broadcom BCM2835 700MHz CPU, 256MB SDRAM, 1080p30 H.264 HDMI, 2× USB 2.0, SD/MMC card reader, 100Mb LAN
• VIA Technologies outs $49 APC: VIA 800MHz processor, 512MB RAM, 2GB flash memory, and built-in (up to 720p) graphics. HDMI, VGA, 4 x USB, audio out / in, microSD and Ethernet, custom Android 2.3
• Cubieboard: 1G ARM cortex-A8 processor (NEON, VFPv3, 256KB L2 cache), OpenGL ES GPU Mali400, 512M/1GB DDR3 @480MHz, HDMI 1080p, 100M Ethernet, 4GB Nand Flash, 2 USB Host, 1 micro SD slot, 1 SATA, 1 IR, 96 extend pin

• Arduino
• Texas Instruments
  • Beyond Launchpad: Other MSP430 Development Boards
  • TI LaunchPad MSP-EXP430G2 = недорогая альтернатива Arduino

• Packardbell's Store and Play
• Nintendo WII
